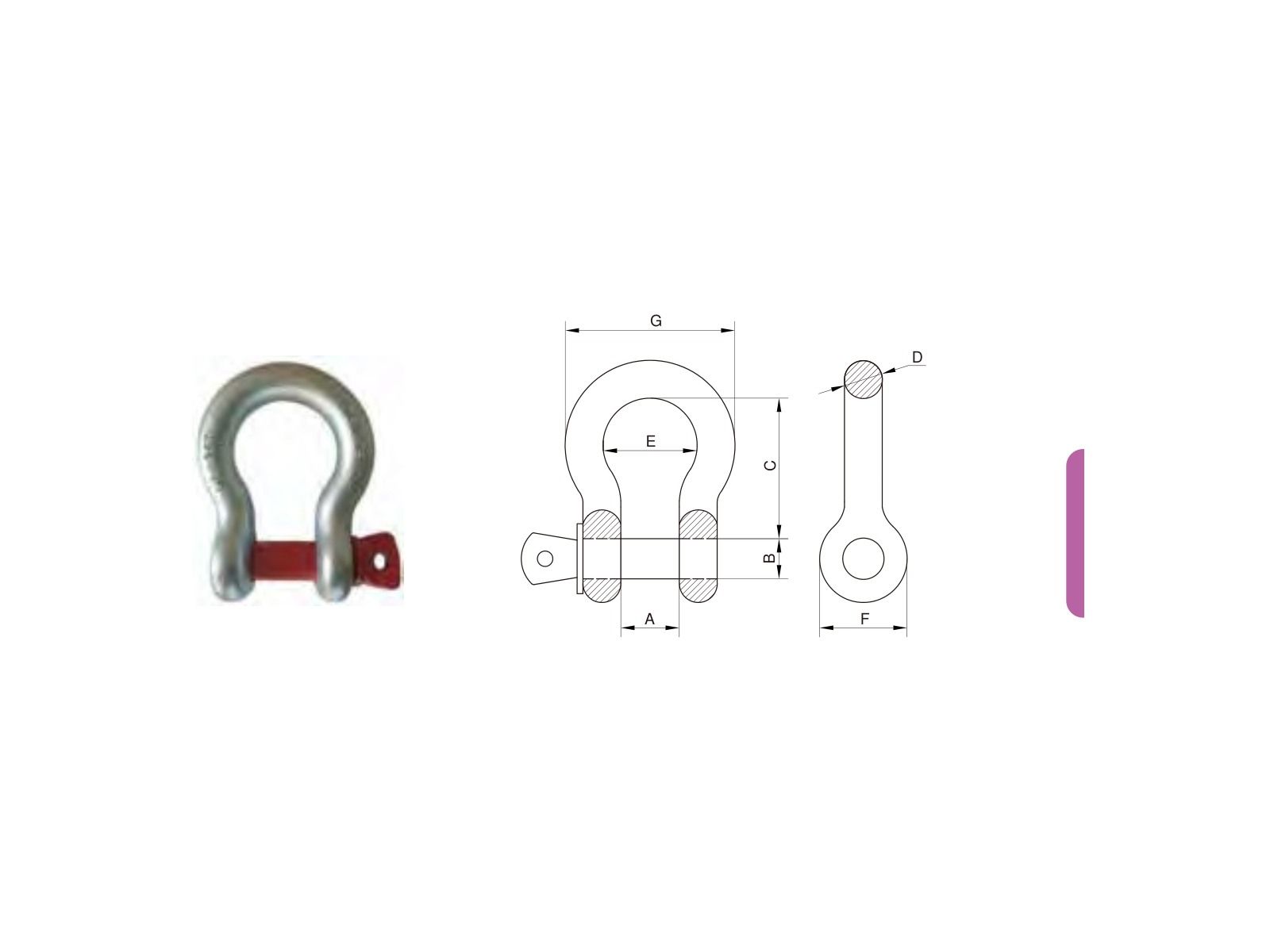

HaoSail G209 US Type Bow Shackle with Screw Pin
HaoSail product family: G209 US Type Bow Shackle with Screw Pin.
Variants differ by size and working load.
Specifications
- Grade: G209
| 3/16 mm / WLL 0.33 t | |
| 1/4 mm / WLL 0.5 t | |
| 5/16 mm / WLL 0.75 t | |
| 3/8 mm / WLL 1 t | |
| 7/16 mm / WLL 1.5 t | |
| 1/2 mm / WLL 2 t | |
| 5/8 mm / WLL 3.25 t | |
| 3/4 mm / WLL 4.75 t | |
| 7/8 mm / WLL 6.5 t | |
| 1 mm / WLL 8.5 t | |
| 1-1/8 mm / WLL 9.5 t | |
| 1-1/4 mm / WLL 12 t | |
| 1-3/8 mm / WLL 13.5 t | |
| 1-1/2 mm / WLL 17 t | |
| 1-3/4 mm / WLL 25 t | |
| 2 mm / WLL 35 t | |
| 2-1/2 mm / WLL 55 t | |
| 3 mm / WLL 85 t | |
| 3-1/2 mm / WLL 120 t |
Especificações
| Brand | HaoSail |
|---|---|
| Product family | G209 US Type Bow Shackle with Screw Pin |
| Section | Rigging Hardwares |
| Subcategory | Shackles |
| Grade | G209 |
| Catalog page | 28 |
SKU: HS2010101
